Tecnofruit Orchard Platform Systems
Tecnofruit is a multi-role orchard platform system easily adapted for year-round orchard management tasks. It comes into its own during harvest by enabling growers to achieve higher pack outs through delicate fruit handling and significantly reduced bruising. It also makes picking fruit easier because no ladders are required. Fruit is placed directly onto soft conveyor belts and is pre-graded on its way to a vertical conveyor for gentle placement in the bin. Fully adjustable, split-level workstations provide access to the upper and middle levels of the tree while low fruit is picked by teams on the ground. Harvesting every level of the tree in one pass enables competent platform teams to pick up to 70 bins a day
STAY UP TO DATE
Fill out the form to download the spec sheet and receive the latest equipment updates directly in your inbox.
Close
STAY UP TO DATE
Fill out the form to download the spec sheet and receive the latest equipment updates directly in your inbox.
Close
STAY UP TO DATE
Fill out the form to download the spec sheet and receive the latest equipment updates directly in your inbox.
CloseFeatures
-

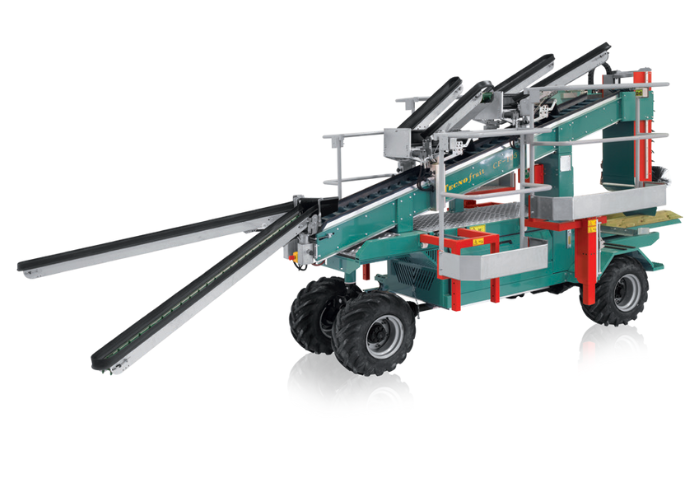

CF105 Orchard Platform
- For row spacings of 2.5m – 3.8m and maximum tree heights of 3.8m
- Engine: Kubota 3 cylinder, 28hp diesel
Max speed: 8kph - Diesel tank capacity: 40 litres 4WD
- Joystick control and ultrasonic self steering assist
- Length: 4.180m
- Width (min/ max): 1.8m/ 3.0m
- Height (min/ max): 2.418m/ 2.910m
- Weight: 2060kgs
-
CF105 Levelling
The Tecnofruit CF105 Levelling Platform is identical to the
CF105, but with the addition of a hydraulic levelling system
to keep the platform level on sloping terrain.- Balance control can be manual, electro hydraulic, or automatic
- Maximum lateral levelling: 20°
- Maximum longitudinal levelling: 20°
- Weight: 2310kgs

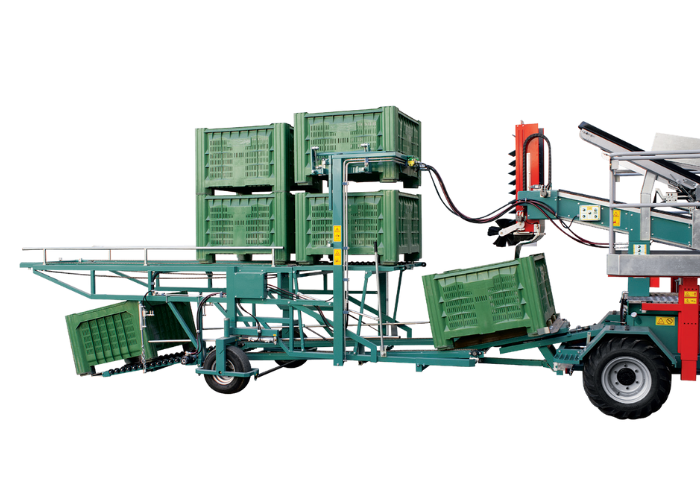

Tecnofruit Automatic
Bin Trailer
The Automatic Bin Trailer is a bin logistics solution that completes the Tecnofruit orchard platform package. With capacity for up to 16 empty and three full bins, it saves time and costs associated with pre-laying bins down orchard rows ahead of each harvest session. The automatic bin system removes the full bin from the Tecnofruit platform and replaces it with an empty bin. Full bins can be held on the trailer or offloaded at one central location.
The trailer is equipped with independent rear wheel hydraulic steering for easier manoeuvrability and a decreased turning circle for the platform and trailer.
STAY UP TO DATE
Fill out the form to download the spec sheet and receive the latest equipment updates directly in your inbox.
CloseWhat Our Customers Say
“The Galaxy guys have been incredibly supportive. They’re passionate about what they do and have really made an effort to help us understand how to make the Tecno machines work for us. Support is always there – we’re not just left to work it out for ourselves.”
“ When the Galaxy boys convinced us to trial the new SBX30 Wide Belt, our productivity went from 40 bins a day per platform to 65 bins a day per platform. We only have three weeks to harvest our envy crop and this wider belt definitely helped us get it done faster. ”
“ By the end of the season, productivity with the Tecnofruit platform will probably be 50% higher than it would have been with ladders and picking bags. It’s an absolute no brainer to use this technology to make people more productive. "
